| 学年: | 6000シリーズ | 気性: | T3-T8 |
|---|---|---|---|
| 合金: | 6063 | 表面仕上げ: | アノード酸化 |
| アノジスされた厚さ: | 8-25um | 粉体覆いの厚さ: | 60-120um |
| プロファイルの厚さ: | 0.8 - 5.0mm | サイズ: | 3m -6mあたり6m |
| 抗張力: | ≥160MPa（T5）、≥205MPa（T6） | 降伏強度: | ≥110MPa（T5）、≥180MPa（T6） |
| 伸長: | ≥ 8% | 押出容量: | 400*150mmおよびφ360 |
| 生産能力: | 毎月5000メートル | Moq: | 各アイテムの500kg |
| 形状のオプション: | 丸い、正方形、平ら、中空、楕円形、三角形、Uプロファイル、Lプロファイル、Tプロファイル | ||
| ハイライト: | Mechanical Bright Polished Aluminum C U Profile,Mirror Anodized Aluminum Extrusion Profile,Customized Color Extruded Aluminum Profile |
||

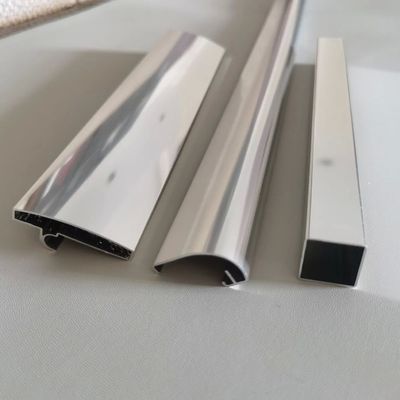

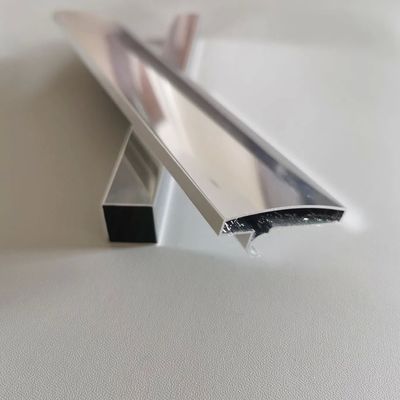

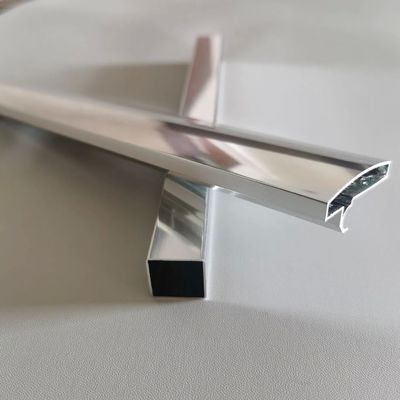

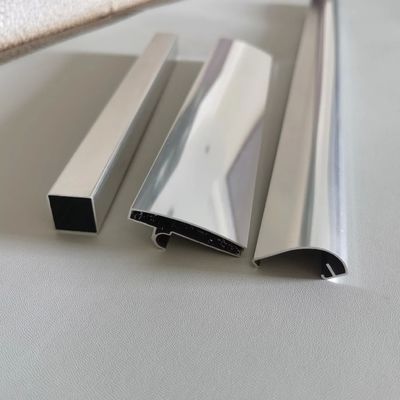

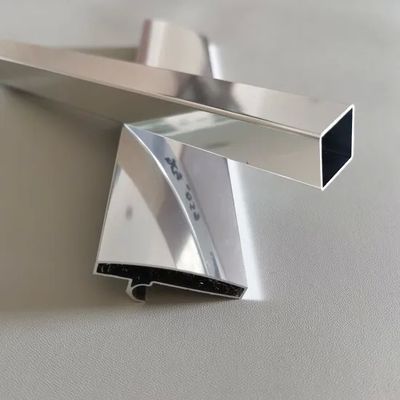

Our premium grade extruded aluminum C U profiles feature mechanical bright polished mirror anodized finish, ideal for shower room applications. Manufactured using our 4500T grade extrusion machine capable of producing any section within 400×150mm and φ360 dimensions.
Custom drawings welcome. Pricing based on aluminum ingot cost, extrusion cost, surfacing cost, and additional requirements.
| Material | Aluminium 6000 series alloy (6063, 6005, 6061) |
|---|---|
| Temper | T4, T5, T6 |
| Size | 3m - 6m per piece (custom lengths available) |
| Shape | Round, square, flat, hollow, oval, triangle, U-profile, L-profile, T-profile (custom shapes available) |
| Thickness | 0.8 - 5.0mm |
| Application | Elevator components, shower rooms, and architectural applications |
| Surface Treatment | Mill-finish, anodized, powder coated, electrophoresis, brushed |
|---|---|
| Anodized Colors | Silver, black, champagne, bronze, gold (custom colors available) |
| Anodized Thickness | 8 - 25μm |
| Powder Coated Colors | Custom colors available |
| Powder Coated Thickness | 60 - 120μm |
| Color Guarantee | Stable for 10-20 years with indoor use |
| Bundles Packing | EP foam protection with waterproof craft paper wrapping |
|---|---|
| Carton Packing | Individual plastic bags with multiple pieces per carton |
| Wood Pallet Packing | Bundles or cartons loaded on wood pallets |
| Custom Packing | Available upon request |
| MOQ | 500kg per item (13-15 tons for 20GP; 25 tons for 40HQ) |
|---|---|
| OEM Service | Accepts drawings, samples, or customer designs |
| Production Capacity | 5,000 metric tons monthly |
| Processing Services | CNC, drilling, milling, cutting, bending, tapping, welding, assembling, punching |
| Brand | HENTEC |
| Certifications | ISO9001-2008, ISO14001, SGS |
| Delivery Time | 12-18 days for die development and samples; 20-30 days for mass production after sample approval |
| Payment Terms | T/T, L/C |
| Port | Shanghai |
| Settlement | By final actual weight or drawing theoretical weight |
Our aluminum profiles are widely used in automotive, rail transportation, machinery, electronics, medical equipment, solar PV products, radiators, fitness equipment, building construction, lighting fixtures, ventilation ducts, and oil pipelines.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 6063 | T5 | ≥160MPa | ≥110MPa | ≥8% |
| 6063 | T6 | ≥205MPa | ≥180MPa | ≥8% |
| 6061 | T6 | ≥265MPa | ≥245MPa | ≥8% |
Soccer City Stadium, Johannesburg: As main aluminum supplier for Africa's largest stadium (94,000 seats), our products contributed to this landmark project.
Lobster Trailers: Our R&D team optimized designs for this Nordic trailer giant, reducing production costs while improving performance.
School Furniture Project: Supplied aluminum legs for school desks, demonstrating our design capabilities and manufacturing expertise.
