6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

中国 Hentec Industry Co.,Ltd 認証
中国 Hentec Industry Co.,Ltd 認証
8年間以上あなたのサポートをたくさんありがとう、私達はプロダクトおよび良質のサービスの良質のために実際に認めますあります。

—— ジェームス スコット

私達は商品を、それら見ます完全に、チームHentcの助けへの感謝受け取りました。

—— Ane Unamuno

Le success deのセリウムのnouveauの計画のdépend DUサポートde l'equipee HENTEC en termes de technologie deのtraitement。Merciのà HENTEC deのnous援助のàのcontrôlerのles coutss de maniereeのefficaceとàのrépondreのà NOのexigences enのtermes deのhaute qualité。Nous nous rejouissonss de notreの未来の共同!

—— Yann Pauwels

オンラインです

6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

大画像 :  6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

商品の詳細:
文書: 製品説明書 PDF
お支払配送条件:
最小注文数量: 500
価格: 1.99
詳細製品概要
材料: アルミニウム 色:
形: ラウンド 表面処理: ミル仕上げ、陽極酸化、砂の爆破、パウダーコーティング
合金タイプ: 6063、6061、6060、6005 抗張力: 160-265MPA
降伏強度: 110-245MPA 伸長: ≥ 8%
生産能力: 50000PCS /MONTH 最大直径: 350mm
最大押し直径: 600mm CNC加工長: 6メートルまで
打ち抜き厚さ: 5mm 色の陽極酸化: シルバー、ブラック、ゴールド、シャンパン、模倣スチール
受渡し時間: 7〜10日
ハイライト:

6063 Alloy LED Light Heatsink

,

2 Year Warranty Aluminum Extrusion Profile

,

ISO9001 Certified Aluminum Heat Sink

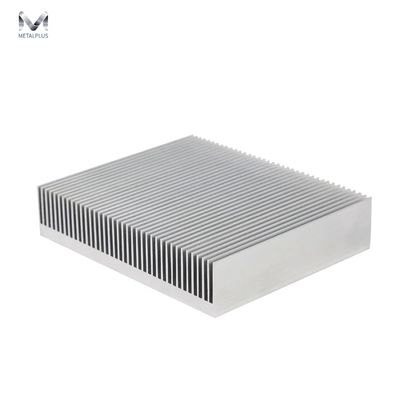

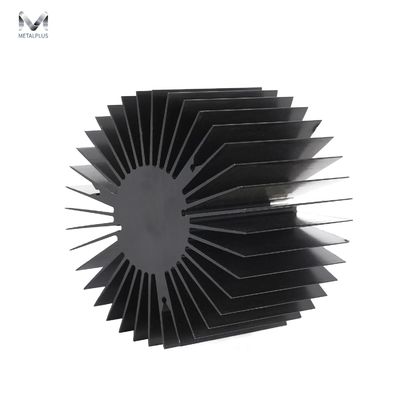

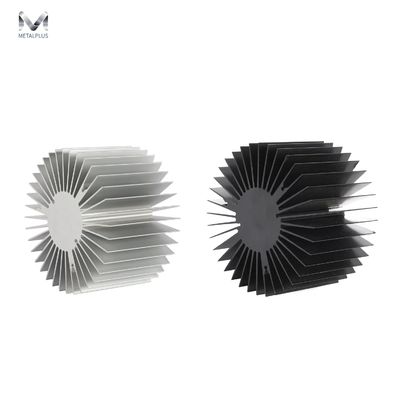

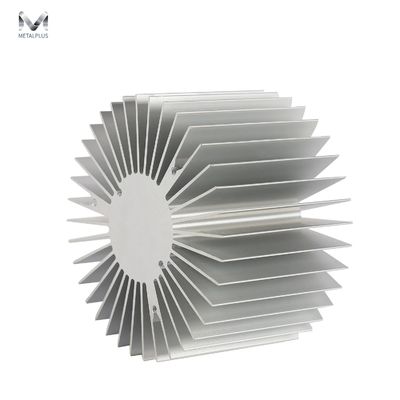

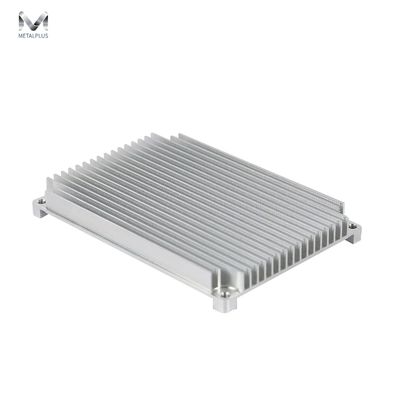

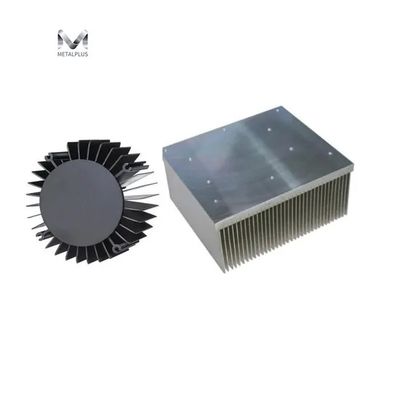

Silvery Anodized Custom LED Light Heatsink Extrusion Profiles with CNC Machining
Aluminum heat sink extrusion is the most common and cost-efficient thermal solution for electronic devices and industrial applications. Our extruded aluminum heat sinks offer lightweight construction, excellent thermal performance, and cost-effective manufacturing.
Product Specifications
Product Name Aluminum Alloy LED Heat Sink
Raw Material Aluminium
Surface Treatment Mill finish, Anodizing, Sand Blasting, Powder coating
Equipment CNC machine, grinding and shot peening machine, Precise tensile strength testers, magnetic powder flaw detectors
Deep Processing Cutting, Drilling, Tapping, Polish, Milling
Certification ISO9001, SGS certificate, ROHS report
Usage High-power Semiconductor, Power Electronics cooling, LED/lamp electronic ballast, audio equipment, power amplifier circuits, automatic control meters
Delivery Time 7-10 Days after order confirmation
Technology Support
With over 600 employees including 50 R&D specialists, we provide comprehensive support from initial design to final production. Our process includes:
  • Rapid design drawing and specification development
  • Quick quotation and lead time confirmation
  • Prototype production and testing
  • Full-scale production after approval
Applications
Our heat sinks are essential components in various industries, including:
  • Audio Equipment
  • UPS/EPS power supplies
  • Inverters and transformers
  • Battery packs and new energy controllers
  • Charging piles and welding machines
  • Communication transmitters and base stations
  • Control cabinets and power regulators
Company Advantages
  • ISO 9001:2008 certified
  • Comprehensive production facilities including extrusion machines, powder painting lines, and CNC equipment
  • Advanced equipment and excellent R&D team
  • Professional designers and experienced workers
  • Strict quality control with 100% inspection
  • Highly skilled manufacturing processes
Technical Data
Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Production Capabilities
Our comprehensive services include:
  • Custom profile design with CAD drawings and 3D models
  • Design optimization to reduce costs and improve performance
  • Complete "one-stop" production from design to surface treatment
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 0
Factory Equipment
Our manufacturing capabilities include:
  • 44 aluminum extrusion lines with maximum outer diameter of 350mm
  • 6800 ton extruder for industrial profiles up to 600mm diameter
  • 6 anodizing production lines with uniform oxidation film thickness
  • 4 powder spraying lines with high-quality Swiss equipment
  • Advanced CNC machining centers for complex profiles
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 1 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 2 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 3
Quality Assurance
We maintain strict quality control throughout our production process:
  • Professional inspectors examine all anodized products
  • Defective products are either reprocessed or scrapped
  • Color consistency is maintained across production batches
  • 100% inspection before packing
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 4 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 5 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6
Packaging and Shipping
All products are carefully packaged and undergo strict warehouse management procedures to ensure quality upon delivery.
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 7
Certifications
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 8
Notable Projects
We're proud to have supplied aluminum components for major projects including:
  • Soccer City Stadium in Johannesburg - the largest capacity stadium in Africa
  • Collaboration with Lobster Trailers, a Nordic trailer manufacturer
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 9 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 10
