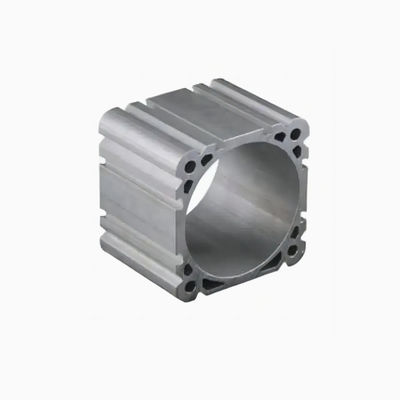

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

中国 Hentec Industry Co.,Ltd 認証
中国 Hentec Industry Co.,Ltd 認証
8年間以上あなたのサポートをたくさんありがとう、私達はプロダクトおよび良質のサービスの良質のために実際に認めますあります。

—— ジェームス スコット

私達は商品を、それら見ます完全に、チームHentcの助けへの感謝受け取りました。

—— Ane Unamuno

Le success deのセリウムのnouveauの計画のdépend DUサポートde l'equipee HENTEC en termes de technologie deのtraitement。Merciのà HENTEC deのnous援助のàのcontrôlerのles coutss de maniereeのefficaceとàのrépondreのà NOのexigences enのtermes deのhaute qualité。Nous nous rejouissonss de notreの未来の共同!

—— Yann Pauwels

オンラインです

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

大画像 :  Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

商品の詳細:
証明: SONCAP, ISO, RoHS, TUV
文書: 製品説明書 PDF
お支払配送条件:
最小注文数量: 500
価格: 2
詳細製品概要
合金: 6063、6061、6005、6060、6082 気性: T5、T6、T66
表面処理: 陽極酸化、パウダーコーティング、ブラシ 形: 四角
色: 銀色、黒 抗張力: ≥160MPa(T5)、≥205MPa(T6)
降伏強度: ≥110MPa(T5)、≥180MPa(T6) 伸長: ≥ 8%
最大直径: 350mm 生産能力: 50000PCS /MONTH
ポーランド型: 化学/機械用ポーリング Siの内容: 0.2-0.6%(6063)
Mgの内容: 0.45-0.9%(6063) Feの内容: 0.35%(6063)
CUの内容: 0.1%(6063)
ハイライト:

6063 T5 Aluminum Cylinder

,

6000 Series Electrical Motor Shell

,

T3-T8 Aluminum Extrusion Profile

Anodized Electrophoresis Anti Scratch 6063 T5 Aluminum Cylinder / Electrical Motor Shell

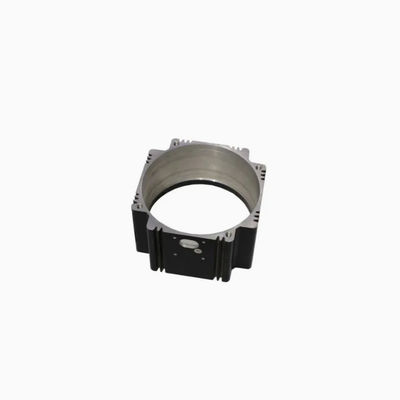

Electric motor housing aluminum extrusion, also known as aluminum alloy motor shell or servo motor housing aluminum profiles, designed for industrial applications.
Product Features

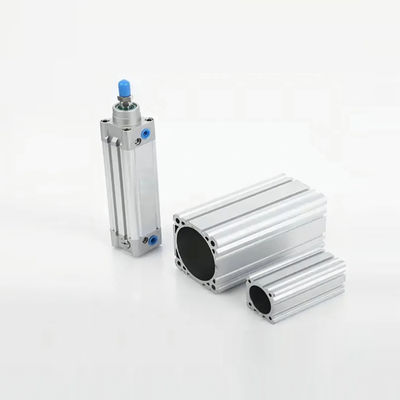

  1. Material: Aluminum Alloy Extrusion Anodized Aluminium Profile for Pneumatic Cylinder
  2. Alloy temper options: 6063, 6061, 6005, 6060, 6082, T5, T6, T66
  3. Manufacturing standards: EN755, ASTMB221, DIN Standard
  4. Surface treatment options: Mill finish, Anodizing, Powder coated, Brushed
  5. Applications: Industrial equipment, Construction components
  6. Key advantages:
    • Pure 99.7% aluminum materials without scrap content
    • OEM services including custom die design and manufacturing
    • Customizable surface treatments to meet specific requirements
    • Strict quality control processes ensure superior quality
    • Hard alloy composition extends product lifespan
    • Safe and convenient packaging solutions
Manufacturing Process
Die design → Die making → Extruding → Cutting → CNC Machining → Surface treatment → Packing
Technical Specifications
Chemical Composition:
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties:
Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
Our comprehensive support includes:
  • Custom design services including CAD drawings and 3D models
  • Professional R&D team for design analysis and optimization
  • Complete "one-stop" production from design to surface treatment
  • Strict quality control throughout manufacturing process
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 0
Manufacturing Capabilities
Extrusion: 44 aluminum extrusion lines with maximum outer diameter capacity of 350mm, including a 6800 ton extruder for profiles up to 600mm diameter.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 1
Anodizing: 6 production lines producing uniform oxidation films in various colors including silver, black, gold, champagne, and imitation steel.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 2 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 3
Painting: 4 powder spraying lines using Gema Switzerland nozzles with environmentally friendly, durable paints.
CNC Machining: Advanced equipment including 12 PRATIC machining centers, Wegoma cutting machines, 30 punching machines (50-100 ton), and 10 stretch bending machines.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 4 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 5 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 6
Packing and Shipping
Finished products are manually packaged with strict warehouse management procedures ensuring quality control before delivery.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 7
Certifications
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 8
Company History
2004: Recognized Brand of the Building Industry Material Market
2006: Certificate for Product Exemption from Quality Surveillance Inspection & ISO9001
2009: Advanced Company, Jiangsu Famous Brand Certificate, Credible Product of Quality in Jiangsu Province
2012: Established business relationships with Panasonic and LG
2015: Became innovative producer and supplying partner for BOSCH (Germany)
2017: Developed new baseboard heater products
2019: Cooperated with world's largest heater manufacturers
2023: Expanding overseas distributor network
Notable Projects
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 9
Soccer City Stadium, Johannesburg: Supplied aluminum components for Africa's largest 94,000-seat stadium.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 10 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 11
Other Projects: Collaboration with Nordic trailer manufacturer Lobster Trailers and supply of aluminum legs for school furniture projects.
